उत्पाद विवरण:
|
| Lead Wire Length: | 15mm | Product Name: | X2 Safety Capacitor |
|---|---|---|---|
| आकार: | P10 15 22.5 7.5 मिमी | बढ़ते प्रकार: | होल के माध्यम से |
| रेटेड आवृत्ति: | 50/60Hz | Insulation Resistance: | ≥ 10,000MΩ |
| Rated Voltage: | 310VAC | पैकेज प्रकार: | रेडियल |
| Rated voltage: | Usually **275VAC** (suitable for 220V AC systems) or **310VAC** (higher specifications), and can withstand instantaneous pulse voltages of 2.5kV~4kV. | ||
| प्रमुखता देना: | X2 safety capacitor 0.15UF275V,radial package X2 capacitor,high surge voltage protection capacitor |
||

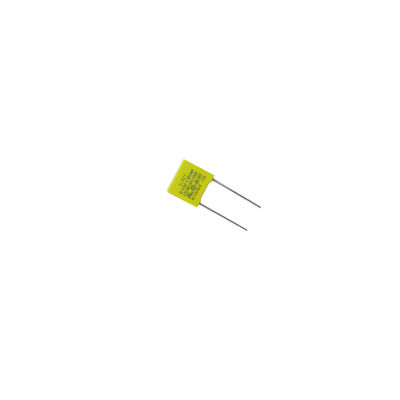

Radial package type with high surge voltage protection, meeting air conditioning safety regulations.
| Attribute | Value |
|---|---|
| Lead Wire Length | 15mm |
| Product Name | X2 Safety Capacitor |
| Size | P10 15 22.5 7.5MM |
| Mounting Type | Through-Hole |
| Rated Frequency | 50/60Hz |
| Insulation Resistance | ≥ 10,000MΩ |
| Rated Voltage | 310VAC |
| Package Type | Radial |
| Rated voltage | Usually 275VAC (suitable for 220V AC systems) or 310VAC (higher specifications), and can withstand instantaneous pulse voltages of 2.5kV~4kV. |
The X2 Safety Protection Capacitor is a vital component that ensures safety and reliability in various electronic devices and equipment. Manufactured using high-quality materials and advanced technology, this capacitor offers superior performance and protection against electrical surges.
With a rated surge voltage of 2.5 times the rated voltage, the X2 Safety Protection Capacitor offers robust protection against sudden voltage spikes and electrical disturbances. This ensures the safety of the connected equipment and prevents damage due to power surges.
| Parameter | Value |
|---|---|
| Lead Wire Material | Tinned Copper |
| Capacitance Tolerance | ±20% |
| Rated Voltage | 310VAC |
| Rated Surge Voltage | 2.5 Times Of Rated Voltage |
| Operating Temperature Range | -40°C To +85°C |
The X2 Safety Capacitor is ideal for various applications where space is limited, such as in power supplies, consumer electronics, and industrial equipment. Its dielectric strength of 1600VAC ensures reliable performance even in high-voltage environments.
We offer Product Customization Services to meet your specific requirements:
