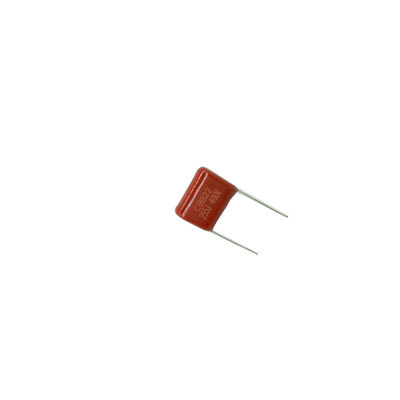

Metallized Polypropylene Film Capacitor CBB22 225J400V P10MM
Applied to high-frequency and pulse circuits
Product Description
The Metallized Polypropylene Film Capacitor is an advanced and reliable electronic component designed to meet the demanding requirements of modern power supply, automotive, and industrial applications. Known for its exceptional performance and durability, this capacitor type offers a wide range of capacitance values from 0.01uF to 2.2uF, making it highly versatile for various circuit designs and functions.
One of the key features is its optimized lead length, which ranges from 5mm to 50mm, allowing easy integration into different circuit boards. The lead spacing can be customized between 2.5mm and 10mm, ensuring compatibility with various design specifications.
With a dissipation factor of ≤ 0.1, the capacitor demonstrates excellent energy efficiency and minimal power loss. The polypropylene dielectric material provides outstanding electrical properties, including high insulation resistance, low dielectric absorption, and excellent self-healing capabilities.
Features
- Product Name: Metallized Polypropylene Film Capacitor
- Operating Temperature Range: -40°C to +85°C
- Lead Type Options: Radial and Axial
- Mounting Type: Through-hole
- Size Dimensions: Diameter 6.3mm to 18mm; Length 6.3mm to 20mm
- Lead Length: 5mm to 50mm
- High performance Metalized Polypropylene Film Capacitor suitable for various applications
- Reliable and stable Polypropylene Film Capacitor with excellent insulation properties
Technical Parameters
| Parameter |
Value |
| Operating Temperature |
-40°C to +85°C |
| Lead Length |
5mm - 50mm |
| Size (Diameter x Length) |
6.3mm - 18mm x 6.3mm - 20mm |
| Mounting Type |
Through-hole |
| Insulation Resistance |
>= 10000MΩ |
| Capacitance |
0.01uF - 2.2uF |
| Rated Voltage |
50V - 1000V |
| Lead Spacing |
2.5mm - 10mm |
| Package Type |
Tape And Reel |
| Dissipation Factor |
≤ 0.1 |
Applications
The Metallized Polypropylene Film Capacitor is ideal for power supply circuits, automotive electronics, and industrial applications. Its compact size and robust operating temperature range (-40°C to +85°C) ensure excellent performance in harsh environments.
In power electronics, it stabilizes voltage and reduces electromagnetic interference. In automotive applications, it supports engine control units, infotainment systems, and lighting controls. Industrial uses include motor drives, inverters, and industrial power supplies.
Customization
We offer comprehensive customization services including lead spacing (2.5mm to 10mm), packaging (Tape and Reel), size (diameter 6.3mm-18mm, length 6.3mm-20mm), and lead length (5mm-50mm) to meet your specific requirements.
Support and Services
Our technical support includes product selection guidance, application advice, and troubleshooting. We offer custom solutions, reliability testing, quality assurance, and lifecycle analysis to support your systems.
Packing and Shipping
Capacitors are individually wrapped in anti-static material and packed in sturdy boxes with internal dividers. Bulk orders are securely packed in reinforced cartons with cushioning materials. We use trusted carriers with tracking and insurance for all shipments.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name of this capacitor is CL.
Q2: Where is the CL Metallized Polypropylene Film Capacitor manufactured?
A2: It is manufactured in China.
Q3: What are the typical applications of CL Metallized Polypropylene Film Capacitors?
A3: These capacitors are commonly used in power electronics, filtering, coupling and decoupling circuits, and energy storage applications.
Q4: What are the advantages of using Metallized Polypropylene Film Capacitors from CL?
A4: They offer excellent electrical stability, low dielectric losses, high insulation resistance, and long service life.
Q5: What capacitance and voltage ratings are available for CL Metallized Polypropylene Film Capacitors?
A5: CL offers a wide range of capacitance values and voltage ratings to suit different application needs. Please refer to the product datasheet for detailed specifications.
